High Power Outdoor Wireless Coverage

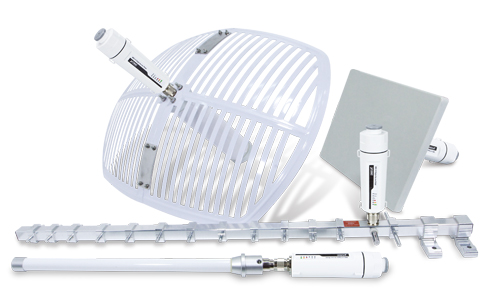

PLANET WNAP-6308 provides a wireless solution that can be easily attached directly to the antenna, which has more flexibility to extend outdoor wireless coverage. Adopting IEEE 802.11n advanced MIMO technology, it provides reliable wireless network coverage, and incredible improvement in the wireless performance. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6308 is able to give stable and efficient wireless performance for outdoor applications, while designed with IEEE 802.11n standard and 1T1R MIMO technology, the WNAP-6308 makes it possible to deliver data rate up to 150Mbps, three times faster than the normal 802.11g wireless device. With the built-in N-type antenna connector, it can directly connect with various types and high gain antenna such as grid, omni directional, flat panel and yagi-design antennas. Thus, the WNAP-6308 can easily cover a wide range and deliver much farther wireless connection with a distance of over 10km. The WNAP-6308 optionally comes with the following PLANET’s products: ANT-OM8, ANT-OM15, ANT-FP9, ANT-FP18, ANT-SE18, ANT-YG13, ANT-YG20, and ANT-GR21.
Multiple Operating & Wireless Modes

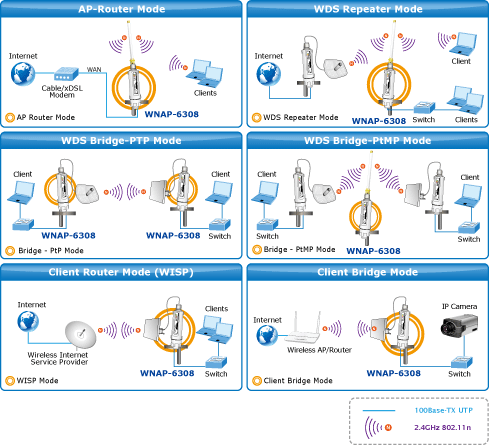

The WNAP-6308 supports multiple types of wireless communication connectivity (AP, Client CPE, WDS PtP, WDS PtMP, and Repeater) allowing for various application requirements and thus it gives users more comprehensive experience when accessing through Wireless LAN. It helps users to easily build a wireless network and extend the wireless range of the existing wireless network. Moreover, the WNAP-6308 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.
Advanced Security and Management
In aspect of security, besides 64/128- bit WEP encryption, the WNAP-6308 integrates WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. Furthermore, with the Dual-SSID feature you can set up two different wireless networks, the WNAP-6308 can therefore serve as a virtual access point for segmented networks tailored to any office or industrial need. With the SNMP-based management interface. The WNAP-6308 is also convenient to be managed and configured remotely.
Highly Reliable Outdoor Device

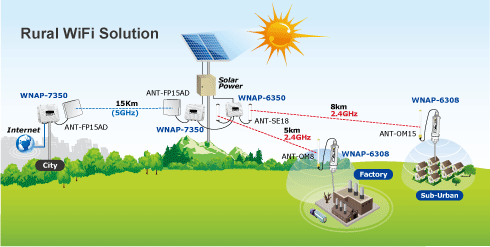

The WNAP-6308 is perfectly suitable to be installed in outdoor environments and exposed locations. Rated to operate at the temperature from -35 to 65 degrees C and adopted IP55 and outdoor UV Stabilized Enclosure, the WNAP-6308 can perform stably under rigorous weather conditions including heavy rain and wind. With the proprietary Power over Ethernet (PoE) design, the WNAP-6308 can be conveniently installed in the areas where power outlets are not available. It is the best way to use the WNAP-6308 to build outdoor wireless access applications between buildings on campuses, business and rural areas, etc.
To accomplish the concept of Plug-n-Link through an easy way for outdoor wireless network deployment, the WNAP-6308 comes with a built-in N-type antenna connector, which is commonly adapted to an outdoor antenna. Therefore, it is easier to install via directly plugging into the mounted antenna. This gives the user the convenience of constructing the wireless link in a fast manner even though he has no experience in deploying a wireless network. Moreover, using the straps through the extra ring design on the casing can fasten the WNAP-6308 to prevent from shaking or dropping caused by strong wind and earthquake.
